Tipper Trailers
12V hydraulic tipping with 4-stage ram. Hot-dip galvanised, electric brakes, emergency breakaway. Available in single axle 1,800kg or tandem 3,500kg ATM, plus flat top options.
Hydraulic Tipping Power
Standard Features
Serious tipping trailers with hydraulic power, electric brakes, and heavy-duty construction as standard.
12V Hydraulic Power Pack
Battery-powered hydraulic tipping with 4,000kg 4-stage ram. 50A Anderson plug for 12V charging.
450mm Sides & 600mm Cage
Removable headboard, 450mm gates, and 900mm cage. All hot-dip galvanised.
12" Electric Brakes
With emergency breakaway system. 2,250kg rated axles on tandem models.
100×50×5mm Chassis
Serious steel in the drawbar and main chassis. Built for constant heavy use.
9-Leaf Rock & Roll Suspension
Load-share design for maximum stability under heavy tipping loads.

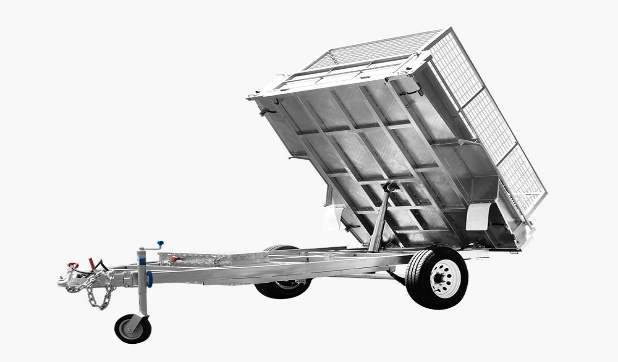

Front & Rear Drop-Down Gates
Removable gates with tie-down rails all the way round. 1900mm drawbar.
15" Sunraysia Wheels
Light truck tyres on 15" Sunraysia rims for serious load capacity.
LED Lights
Long-lasting LED taillights for safe towing day and night.
Tipper Trailer Range
Standard Tipper Trailers
| Size | ATM | Axle | Tare | Available |
|---|---|---|---|---|
| 8×5 | 1,800kg | Single | 765kg | ✓ |
| 8×5 | 3,500kg | Tandem | 1,045kg | ✓ |
| 10×5 | 3,500kg | Tandem | 1,125kg | ✓ |
| 10×6 | 3,500kg | Tandem | 1,195kg | ✓ |
Flat Top Tipper Trailers
| Size | ATM | Available |
|---|---|---|
| 10×6 | 3,500kg | ✓ |
| 12×7 | 3,500kg | ✓ |
Extras
| Item |
|---|
| VINs & On-Road Inspection (Rego Ready) |
| 15" Spare Wheel |
Get Your Tipper Trailer Quote
Tell us which size and configuration you need. We build to order.
